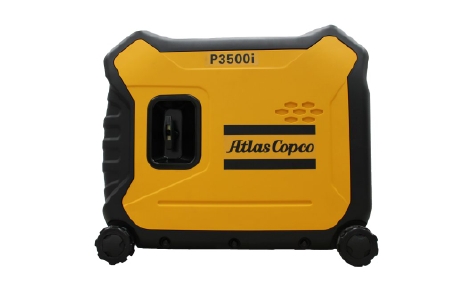

阿特拉斯·科普柯atlascopco汽油发电机P2000i P3500i
阿特拉斯·科普柯atlascopco汽油发电机P2000i P3500i
When it comes to fuel efficiency, compactness and noise attenuation, iP generators are the future. The variable speed smart control, together with paralleling capability, delivers efficient power with the lowest fuel consumption, adapting engine speed to the load conditions.
功能和特点
Recoil start
Large fuel tank
Engine oil guard
Thermal protection
Soundproof canopy CE noise compliant
Sockets
Automatic Voltage Regulation (AVR)
Engine alarms: low oil alert, overload
RPM Control for fuel efficiency
Parallel operation connectors and c
Generator data机型 | | P 2000i | P 2000i W | P 3500i | P 3500i W |
Rated frequency | Hz | 50 | 60 | 50 | 60 |
Rated voltage额定电压 | V | 230 | 120 | 230 | 120 |
Nominal power output额定功率输出 | kVA | 1,6 | 3,0 |
Peak power output | kVA | 1,8 | 3,3 |
Power factor cos Phi | | 1 | 1 |
Fuel tank capacity油箱容量 | l | 4 | 10 |
Fuel autonomy at
nominal power h额定功率使用时间 | | 5 | 6 |
Sockets
configuration | | 1 x SCH | 2 x 3P20A | 2 x SCH | 2 x 3P20A
+ 1 x TL240 |
SCH: Schuko 2P+G 16A | 3P20A: Nema 120 V
20A | TL240: Nema 240/120
V Twist Lock | |
Engine发动机 | | | |
Model机型 | | AC148F gasoline | AC170FD gasoline |
Nominal speed 速度 | rpm | 5000 | 3600 |
Power output | kWm | 2,4 | 4,4 |
Displacement | cm3 | 79 | 212 |
Starter type | | Recoil | Electric / Recoil |
Alternator发电机 | | | |
Power功率 | kVA | 2 | 3 |
Noise level噪声级 | | | |
Sound pressure level
(LpA) at 7m dB(A)声压级（LpA）在7m dB（A） | | 65 | 63 |
Sound
power level (LwA)声功率级（LwA） | dB(A) | 90 | 88 |
Weight
and dimensions重量和尺寸 | | | |
Length长度 | mm | 500 | 580 |
Width宽度 | mm | 285 | 440 |
Height高度 | mm | 455 | 510 |
Weight重量 | kg | 21 | 45 |
