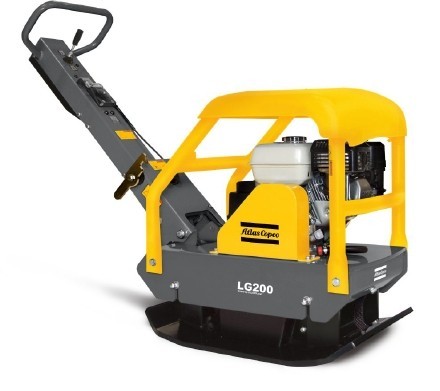

阿特拉斯-科普柯/戴纳派克LG200双向平板夯
Specifications
阿特拉斯-科普柯/戴纳派克LG200双向平板夯
High speed and world-class compaction efficiency make our forward and reversible plates excellent for compacting medium to deep layers of granular soils. The high speed, balanced design and hydraulic control system contributes to easy, precise handling on the roughest of surfaces or for spot compaction.
Features & benefits
Hydraulic forward/reverse lever
Engines with low fuel consumption and emissions
Heavy-duty protection frame and impact resistant steel covers protect engine and transmission.
High quality bottom plate
Applications
Cobbles and boulders
Sand and Gravel
Silt
Technical data
单位:
公制
英制
阿特拉斯-科普柯/戴纳派克LG200双向平板夯
| 技术规格 | |
|---|---|
| 工作质量 | 217 kg |
| 离心力 | 36 kN |
| 铭牌宽度 | 500 mm |
| 发动机品牌 | 本田 |
| 功率 | 4.8 kW |
| 速度 | 25 m/min |
| 振幅 | 1.9 mm |
| 频率 | 65 Hz |
| 保证的声功率级 | 105 dB(A) |
| 操作员耳边声压级 | 90 dB(A) |
| 震动释放值 | 3.5 m/s² |
